About Framing
A frame is the skeleton of a house. If the frame is strong, it provides the necessary support for everything that follows. But if it's weak, no amount of expensive finishes will hide the flaws: Those perfectly plastered walls will begin to crack every time a door slams, the granite countertops will gradually fall out of level, and the quartersawn oak floors will bounce and squeak like a rusty spring. "Shortcuts in framing are the biggest mistake you can make," "although it may take four or five years before the sagging, the bouncing, and the movement start to show up."
While the basics of modern stud-wall framing haven't changed much in the past 25 years, the tools and materials certainly have. Pneumatic nail guns, which were novelties until the mid 1970s, have speeded up the assembly process; engineered lumber is steadily supplanting sawn boards, and metal connectors are now routinely used to enhance stiffness and sturdiness.
But we warn that tools and materials by themselves don't guarantee a strong house frame. They need to be in the hands of a skilled carpentry crew who know how to use them. "They'll build it right the first time," "so you won't be sorry later on." To see how we frame a house, read on.

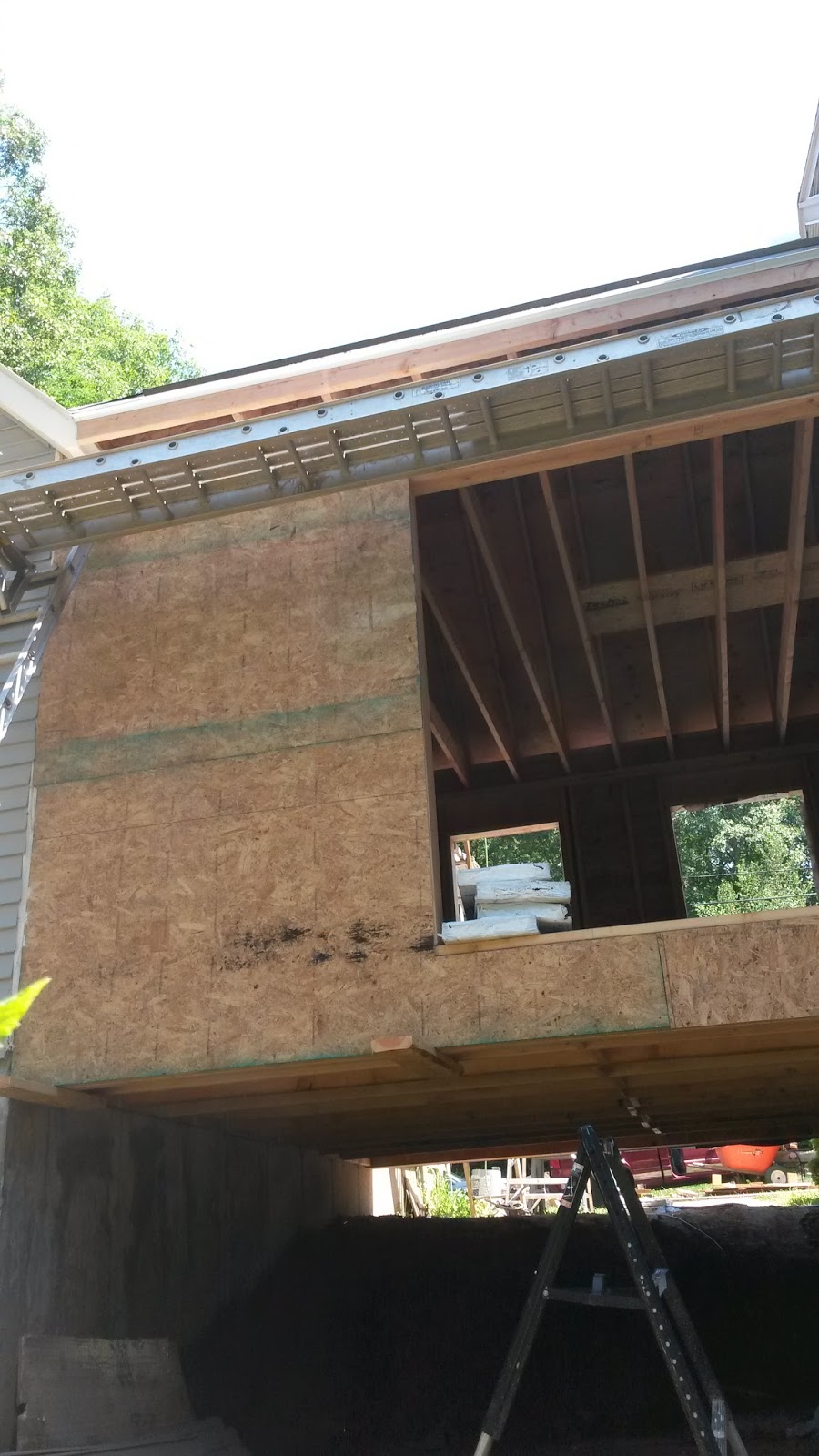

House frames can be made out of thick posts and beams (the oldest framing method) or extra-long studs (the balloon grames of the Victorian era). But we typically frame in one-story "platforms" consisting of 8-or-9-foot-high stud walls resting on a plywood-sheathed subfloor. Each story is framed atop the previous one, until it's time to put on the roof.
NAILING TIPS
USE THE RIGHT-SIZE NAILS. Codes specify length, girth, and number of nails in critical joints.DON'T OVERDRIVE. A nail head sunk too deep into the wood can't pull its full weight.
FRAMING TIPS
SPACE CONSISTENTLY. Placing joists, studs, and rafters exactly 16 inches apart gives solid support to panel ends.USE DRY WOOD. Lumber stamped "S-dry" or "KD" (kiln dried) is less likely to warp and twist.KEEP WOOD DRY.Block stacks off the ground and cover them with tarps.
SHEATHING TIPS
USE PLYWOOD CLIPS ON ROOF AND WALL PANELS. The 1/8-in. gap they create between each sheet prevents buckling.LAY SHEETS PERPENDICULAR TO FRAMING. Increases overall strength and stiffness.GLUE AND FASTEN. Adhesives can improve bond strength by a third.
METAL HANGERS AND TIES
Concern about the weakness of nailed joints, particularly in earthquake and hurricane prone regions, has made metal straps and ties a fixture in codebooks and on today's job sites, even where such natural disasters seldom occur. There are hundreds of different types of galvanized-steel fittings, from joist hangers to hurricane straps, with new ones coming on the market almost every month. Each connector uses more nails than an "old-fashioned" joint because every hole in the connector needs to be filled. But with the right nail gun there's almost no reduction in installation speed. Note: Use only nails specified by the manufacturer—no substitutions!
LIGHTWEIGHT JOISTS
An I-joist consists of a "web" of high-grade OSB (oriented strand board) glued between two horizontal "flanges" of conventional lumber or LVL (laminated veneer lumber). It's just as strong as a sawn 2x of the same width but only half the weight, and it's made in lengths of up to 60 feet. Best of all, holes for plumbing and ductwork can be cut through the web (at specified sizes and intervals) without compromising structural integrity.
ENGINEERED BEAMS
LVL beams are composed of wood veneers glued together under heat and pressure. All the veneers are oriented precisely in the same lengthwise direction, making LVLs nearly 20 percent stiffer than ordinary sawn lumber. While LVLs are commonly used as ridge beams and headers above windows and doorways, we have also used them as joists, rafters, and stair stringers—anywhere it needs maximum performance in minimum space. They're heavy, but we like them because they're as strong as steel, yet he can cut them with an ordinary saw.
FOAM ADHESIVES
New foam-based adhesives use the superior sticking power of polyurethane and are easily dispensed with just a finger on the trigger. Even better, one can of foam contains the equivalent of 15 tubes of old-style adhesive.
TENACIOUS NAIL
The Sheather-Plus sheathing nail resists uplift forces twice as well as standard smooth-shanked nails, thanks to a ringed shank, an oversize head, and a cement coating that acts like a lubricant to speed the nail home, then bonds to the wood.
SUPER STUDS
Laminated strand lumber — flakes of wood that are pressure-glued to the size of a standard 2x4 or 2x6 (inset) — is free of defects, won't warp or bow, and can run as long as 22 feet, a dimension unthinkable in a sawn stud nowadays.
Saturday, August 6, 2016
There are several clues, and the biggest one is age. If your roof is more than 20 years old, there's a good chance it's due for replacement. But younger roofs can fail too, so it's a good idea to inspect a roof at least once a year. Don't use a ladder, though. Binoculars are easier and a lot safer, and you can spot most problems from the ground.
Here's what to look for: numerous shingles that are lifting up, cracked or missing, with curled edges, or with smooth dark areas, which indicate that the protective granules have worn off. Also, go into the attic on a sunny day and, with the lights off, check the underside of the chimney and the stack vent. If you see little pinhole spots of light, the flashing is shot—another indication that the roofing might not be in good shape.
While you're in the attic, scan the underside of the roof sheathing for any new signs of water staining since the last inspection, as well as any soft or moist spots, which tend to show up after a heavy rain. If these problems are widespread, it's a sure sign that you need to call a roofer.
